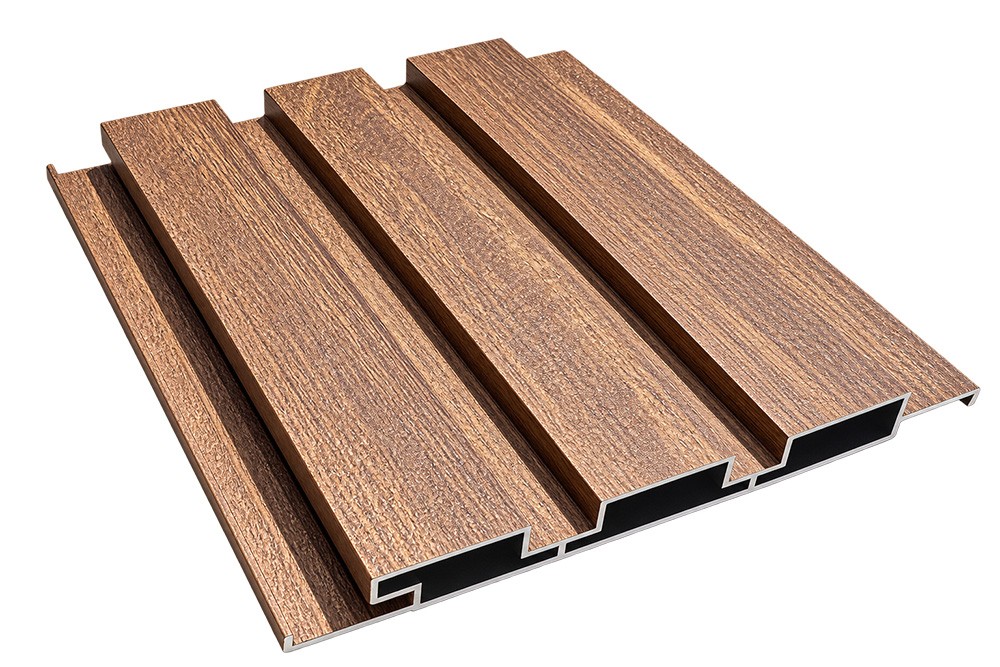

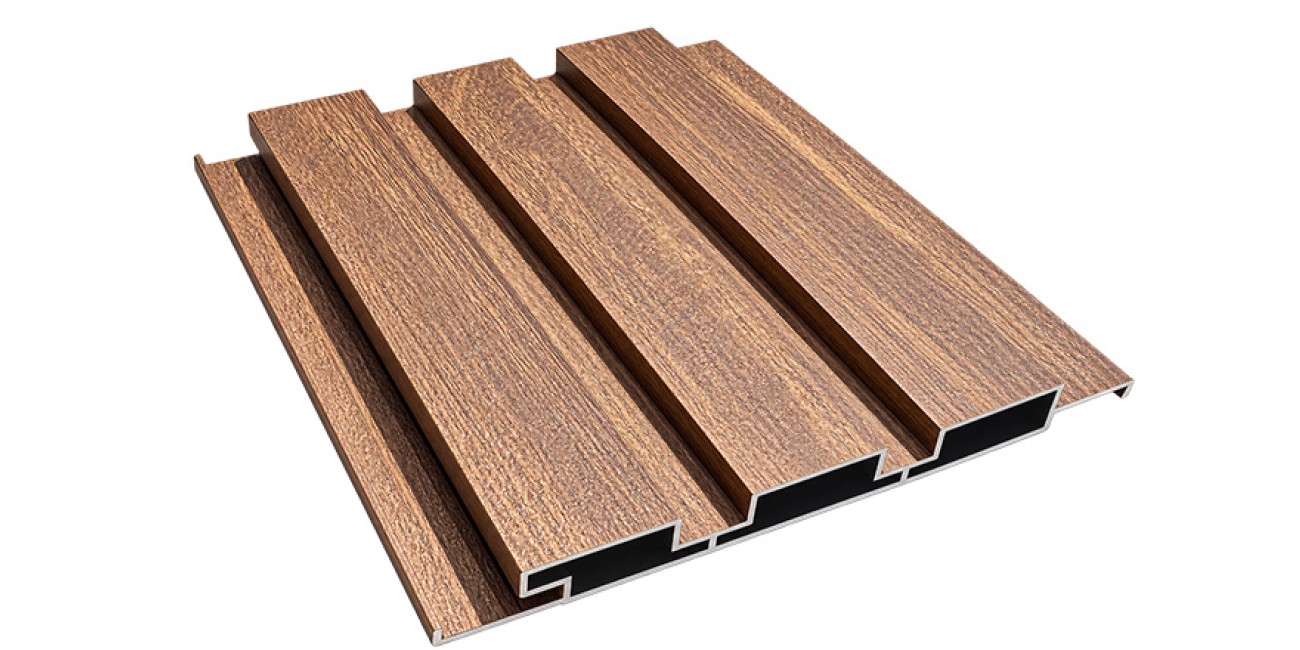

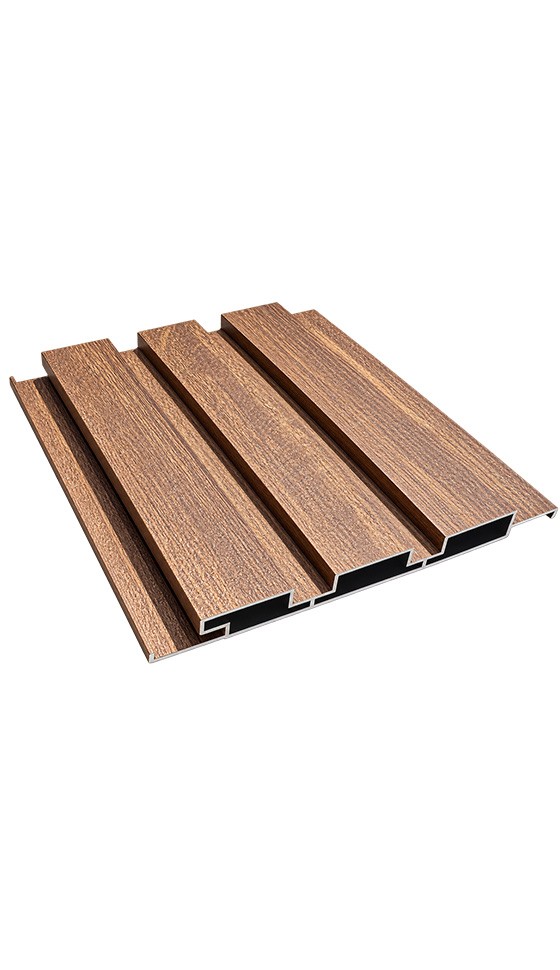

DC-14 Decorative Aluminum Cladding Panel

Decorative Panels

Cosabella DC-14

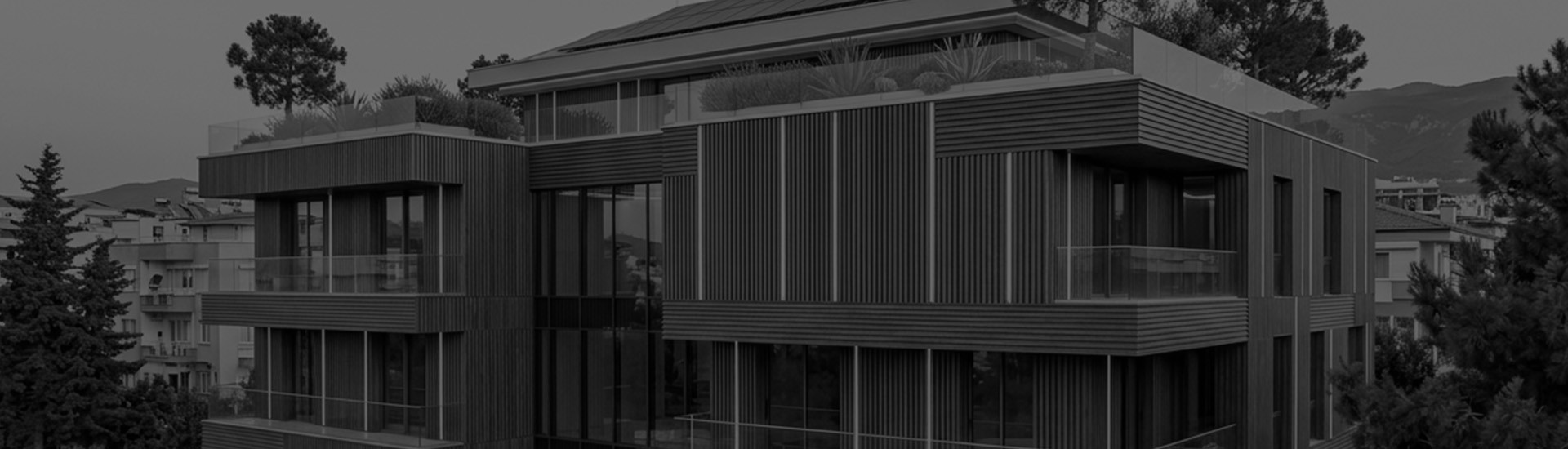

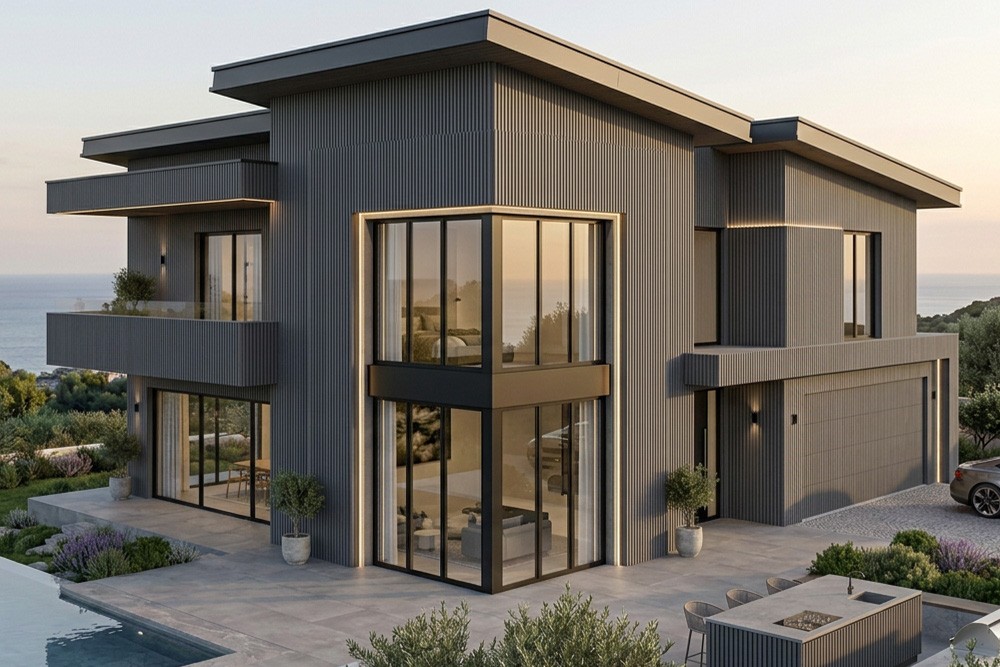

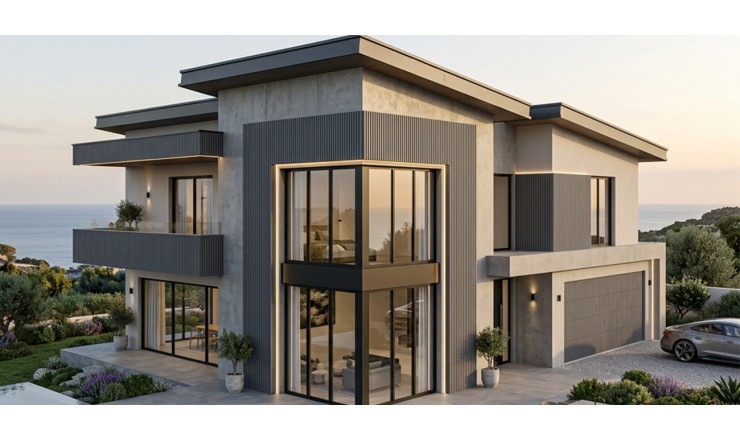

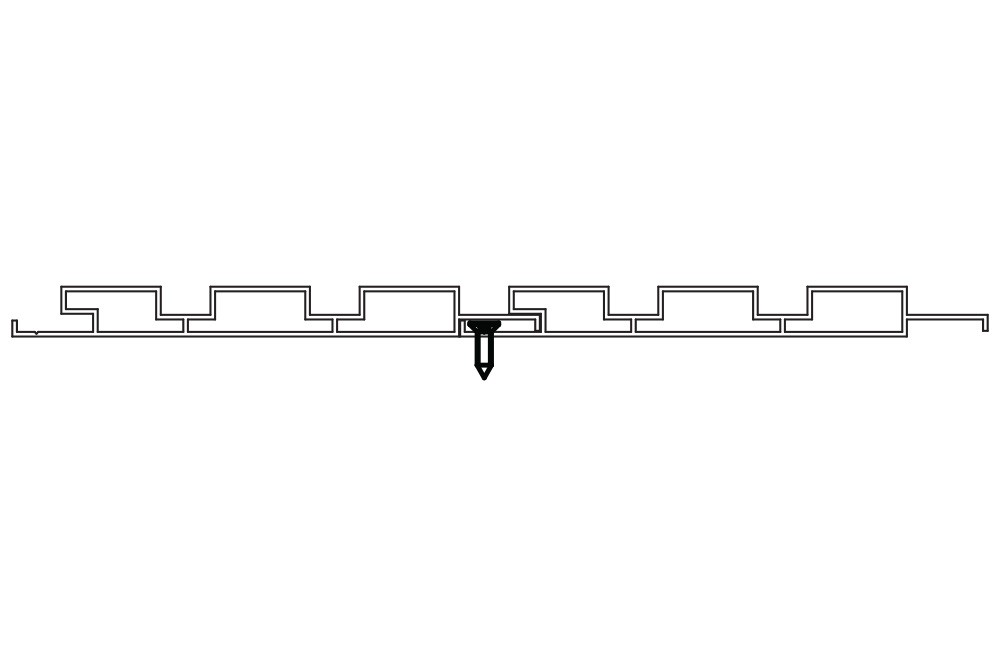

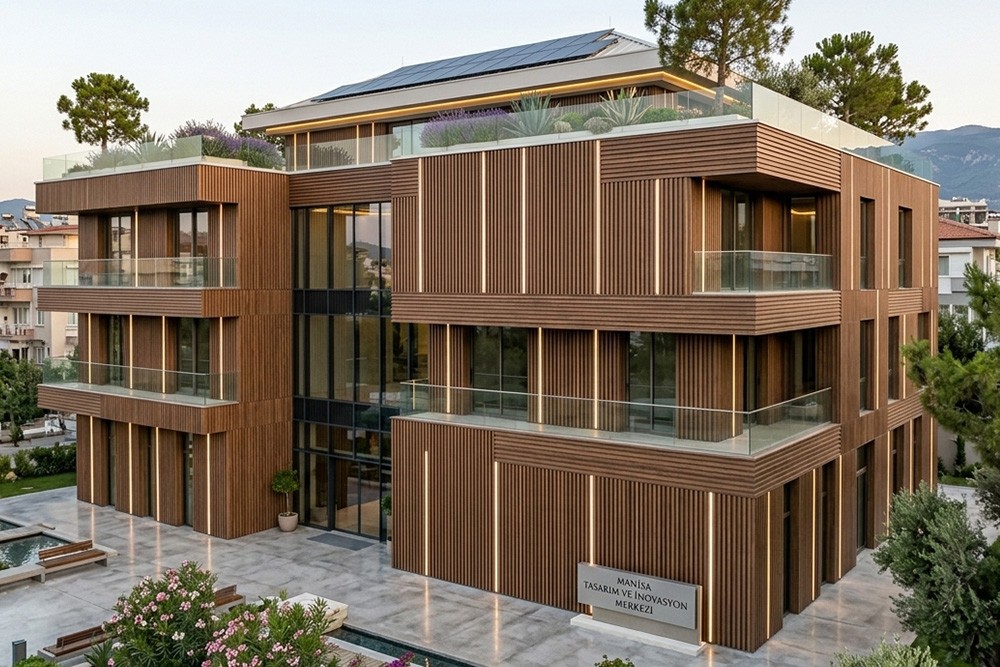

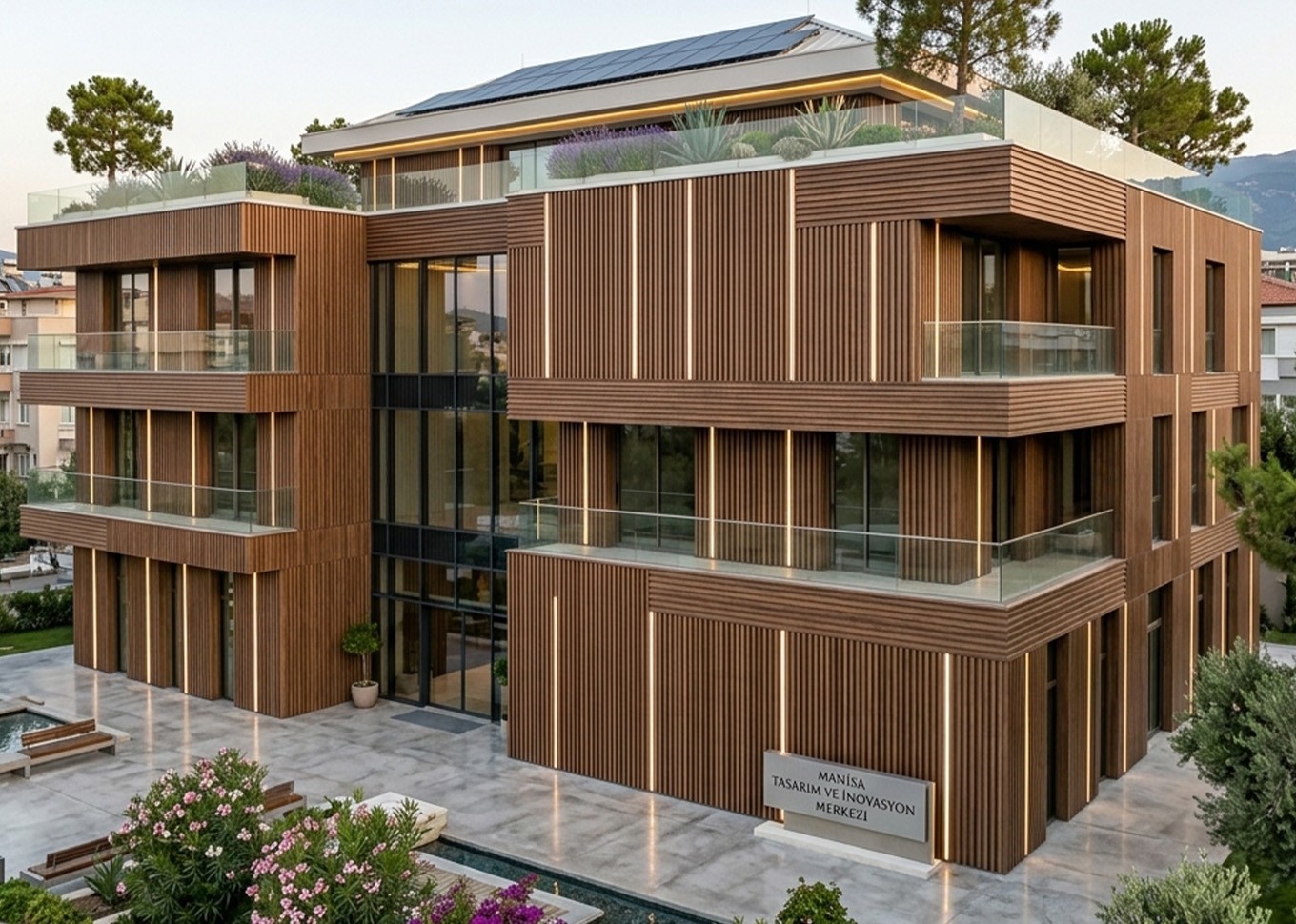

The DC-14 profile’s wide-panel construction allows large façades, soffits and ceilings to be clad much faster and without errors. Its specially designed concealed screw fixing flange allows mounting screws to be completely hidden beneath the interlocking tongue of the next profile. The inherent fire resistance and corrosion resistance of aluminium make the DC-14 system a safe, long-lasting building envelope solution for high-rise and coastal buildings. UV-resistant surface finishes eliminate the risk of fading, blistering and peeling.

Cosabella Integrated Manufacturing Assurance: From design and extrusion to surface treatment and complementary accessories, all components are manufactured at Cosabella’s own integrated facilities in accordance with international Qualicoat and ISO quality standards. This integrated infrastructure ensures maximum system compatibility, long-lasting mechanical performance and measurable consistency of quality across all our products.

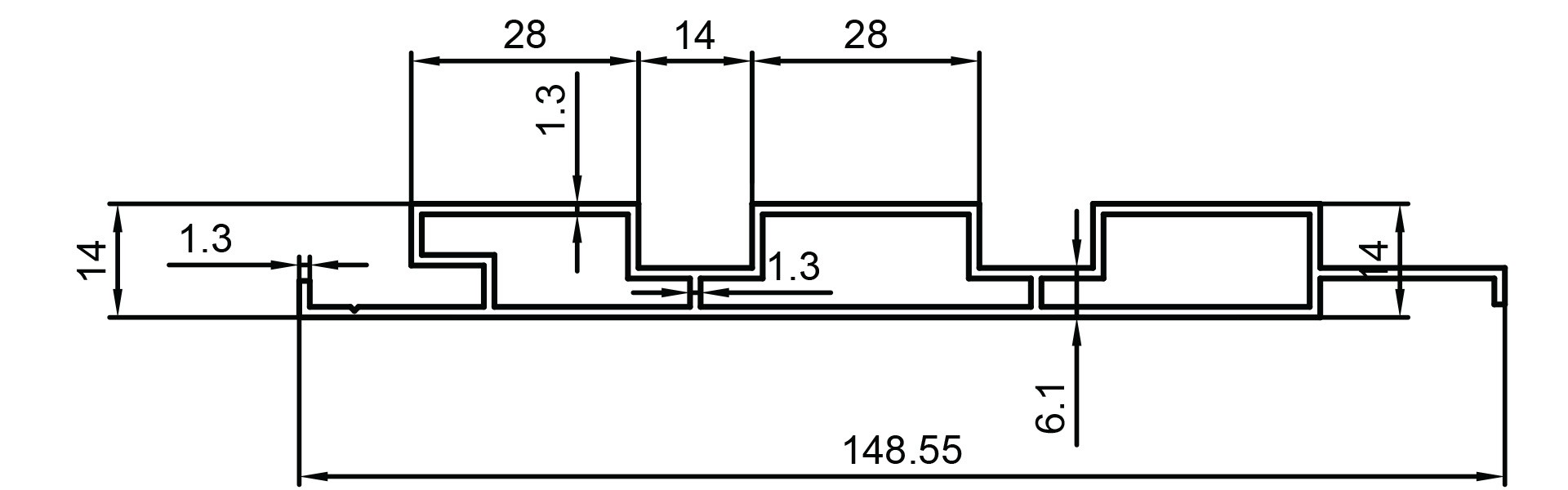

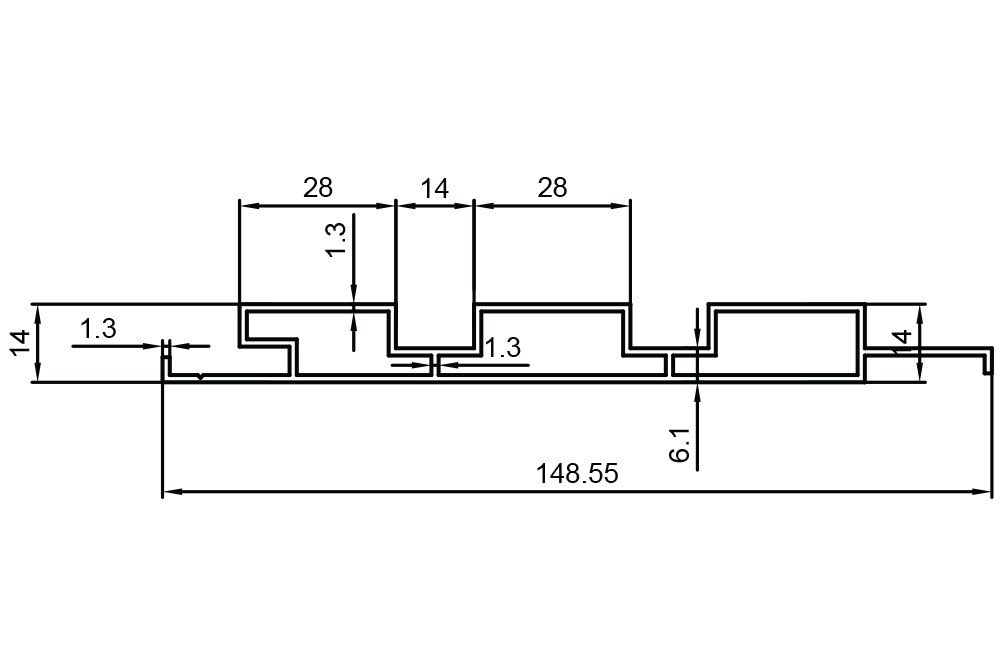

Technical Specifications

Profile Code

7613

Groove Widths

28-14 mm

Profile Depth

14 mm

Overall Base Width

148,55 mm

  • Compact Profile Depth (14 mm): The shallow profile allows an elegant finish at door and window junctions and beneath eaves without creating a bulky supporting structure.
  • Versatile Installation: Flexible installation options allow vertical, horizontal, ceiling or soffit cladding to suit the architectural design.
